Ford 9″ Flanged Axle
$199.99
Available on backorder
- Description
- Shipping
- Reviews (0)
Description
ALL67503 by ALLSTAR PERFORMANCE

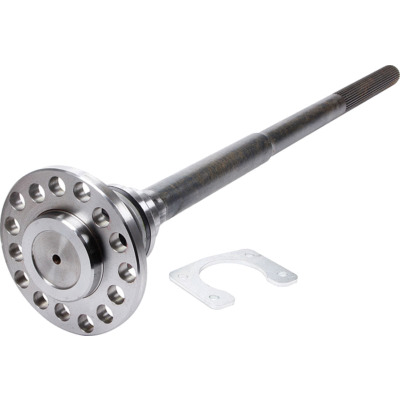

Axle Shaft, 33-1/2 in Long, 31 Spline Carrier, 5 x 4.50 / 4.75 / 5.00 in Bolt Pattern, 9 in of Spline, Bearing Included
Cut to fit 31 spline axles for Ford 9″ rear ends are a great alternative to custom axles for street, drag racing and circle track use. Axles are drilled for .687″ press-in style wheel studs and have multiple wheel bolt patterns for 5 on 4.5″, 4.75 and 5″ bolt circles. Axles have .470″ thick flanges with a 5.94″ outer diameter and a 3.06 hub register to center most rotors and drums. 31-spline axle has a 3.150″ O.D. bearing installed for housing with Big Ford (New Style) ends, a press-on sleeve to retain bearing to the axle and an axle retainer. Wheel studs sold separately.
Product Note: AXLE INCLUDES BEARING AND RETAINER PLATE FOR LARGE BEARING LATE FORD/TORINO STYLE HOUSING ENDS.
Additional information
| Weight | 22.5 lbs |
|---|---|
| Dimensions | 34 × 8 × 7 in |
| Length | 27.5", 28.5", 29.5", 30.5", 31.5", 32.5", 33", 33.5", 34.5", 35", 36" |
